Upstreams configuration
Note that the gateway is experimental and might not be fully functional for production yet.
Upstreams are here the configuration of the flow the gateway will apply for requests to be forwarded to backends. Corresponding to given paths, the gateway will route the requests to the configured server. More than routing capabilities, boruta enhance the requests with the current client and user information but also can apply authorization to them.
Upstream configuration
boruta runs a pool of connections to the upstreamed backend. To configure those you have to provide the scheme, the host, and the port for it to know which server forward to.
The gateway will expose a single entrypoint, in order to route to the servers, the routing is based on the requested path computed by priority. you can provide them filling the URIs fields. Note that you can strip URI meaning that the provided URI part will not be forwarded to the backend.
Authorization
You have the ability to provide authorization to the requests, enforcing clients to have a valid access token. On top of that you can forbid access requiring it to have the needed method / OAuth scope couple. While authorizing, you can customize the unauthorized and forbidden response templates and content-type.
The authorized requests are enhanced with current request information providing a X-Forwarded-Authorization header to the backend with a JWT incorporating client and user information. Those are to be signed with the given algorithm and secrets.

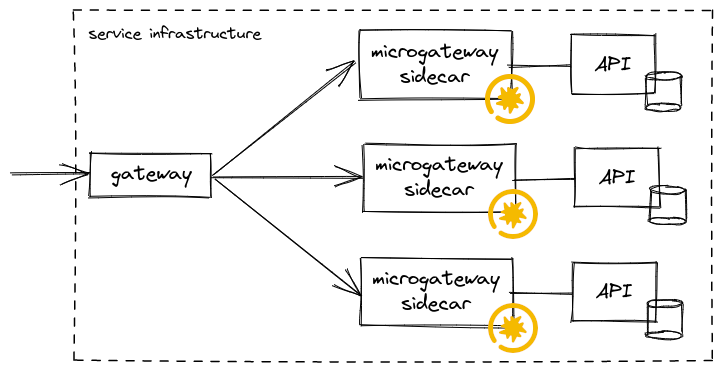

Microgateway / Sidecars
More than a single gateway, boruta can act as a microgateway. Using infrastructure to connect boruta instances together, you can have sidecars connected to one or some of your backends. You can choose the active node configuration with the Node attribute of upstreams. It will use the instance ip as default but can be edited with the usage of static configuration (see below). Note that the gateway and the microgateway will respectively exposed on the ports set by BORUTA_GATEWAY_PORT and BORUTA_GATEWAY_SIDECAR_PORT environment variables.
Manage through User Interface

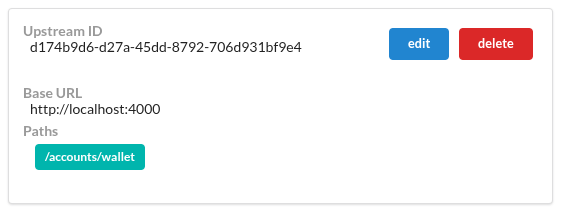

The Administration interface gives the ability to create, update and delete upstreams. All upstream attributes are accessible via the captured form below. All these operations can be managed in the "Upstreams" section in the sidebar menu.
Manage through API
All upstream operations are accessible through a REST API following the below description. All upstream management endpoints are protected with a Bearer token that can be obtained with any OAuth flow. In order to get access, you need to have an access token with the private scope upstreams:manage:all granted.
Have a look at API documentation
